PDToolKit: The Complete PANS-OPS & TERPS Design Suite

Bridge the gap between regulatory complexity and CAD precision with our advanced PANS-OPS & TERPS design software. PDToolKit is the industry-standard PANS-OPS & TERPS design software solution, trusted by ANSPs globally for automating complex flight procedure design within AutoCAD and MicroStation.

Get in touch

ICAO Doc 8168

Strict Compliance

AIXM 5.1

Native Integration

CRC

Data Integrity

Agile Design Environment

A comprehensive toolkit that empowers designers to rapidly build, modify, and validate flight procedures without getting lost in manual calculations.

Fortified Data Integrity

Built-in Cyclic Redundancy Check (CRC) routines protect your data chain of custody, from initial survey import (AIXM/eTOD) to final publication.

Next-Gen Visualization

Generate precise 3D trajectory outputs for flight simulators and charting. Instantly analyze obstacles against complex PANS-OPS limitation surfaces.

Rapid Flight Path Design

Procedure Builder

Transform concepts into flyable tracks in minutes using our intuitive PANS-OPS & TERPS design software. The Procedure Builder offers a dynamic interface for constructing arrival, departure, or approach skeletons, ensuring your PANS-OPS & TERPS design adheres to strict safety criteria from the very first click

  • Seamlessly connect fixes to Navaids (VOR/DME) or GNSS waypoints
  • Real-time protection area analysis against obstacles
  • Full Import/Export capabilities via AIXM 5.1.1
  • Push complex designs directly to PD-CAD for refinement
Explore Builder
PDToolKit Procedure Builder interface showing drag-and-drop flight track construction

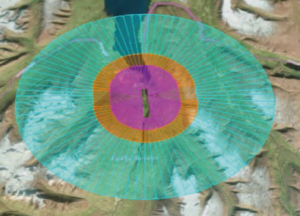

3D obstacle limitation surfaces generated in AutoCAD using PDToolKit

Obstacle Analysis

CAD Surface Modeller

Operating as a native PANS-OPS & TERPS design software add-on for AutoCAD and MicroStation, the Surface Modeller automates the generation of complex obstacle limitation surfaces. This ensures absolute transparency in your PANS-OPS & TERPS design workflow, validating safety against ICAO and FAA standards instantly

  • Comprehensive PANS-OPS & TERPS criteria libraries
  • Automated Annex 14 OLS & ILS OAS assessment
  • Instant penetration and near-penetration reporting
  • Visual transparency for Quality Assurance audits
Explore Modeller

MOC Tools

Aviation Calculator

Eliminate human error with a suite of validated calculation tools. From basic unit conversions to complex Minimum Obstacle Clearance (MOC) derivations, the calculator is your mathematical safeguard.

  • Wind Spiral & Turn Template generation
  • RNAV, VOR/DME, and BaroVNAV constant calculations
  • Full Import/Export capabilitieILS OCH and OAS geometry constantss via AIXM 5.1.1
  • Approach Visibility and DME tolerance checks
Explore Calculator
Aviation calculator tool for Minimum Obstacle Clearance (MOC) derivations
AeroData Manager interface validating AIXM 5.1 survey data

AIXM 5.1 Data Backbone

AeroData Manager

Data integrity is paramount. AeroDataManager orchestrates the entire lifecycle of your aeronautical data, ensuring a smooth, validated workflow from survey capture to final chart production.

  • End-to-end Survey-to-Design workflow management
  • Optional Cloud Storage (AeroDataStore) for team sync
  • Robust validation of all imported aeronautical data
  • Secure graphical representation of survey points
Explore DataManager

From Survey to Sky

Organisation

Ingest raw survey data, define aerodrome parameters, and establish the geodetic baseline.

Compilation

Prepare datasets, filter obstacles, and validate integrity using internal CRC routines.

Design

Utilise the Builder & Modeller to construct tracks and analyse surface penetrations.

Application

Finalise the procedure for export to Charting systems, ARINC 424, or Simulators.

Specialised Add-Ons Add-Ons

ARINC 424 Editor

  • Precise ARINC coding and validation
  • Seamless connection to AXIM systems
  • Ensure FMS database compatibility

View Details

AEROSafeGuard

  • Automated technical safeguarding assessments
  • Protect aerodromes from obstacle infringement
  • Full compliance with ICAO Annex 14 criteria

View Details

ChartToolKit

  • Automated charting production
  • Direct integration with AXIM systems
  • Streamlined output for publication

View Details

Frequently asked questions

Common queries regarding implementation, compliance, and training.

Contact Us
Which CAD platforms is PDToolKit compatible with?

PDToolKit is engineered as a fully integrated, native add-on for both Autodesk AutoCAD and Bentley MicroStation. This ensures your design team can work within a familiar environment without the learning curve of a proprietary CAD engine.

Is PDToolKit compliant with ICAO Doc 9906?

Yes. PDToolKit has been specifically designed to support the Procedure Design workflow as described in ICAO Doc 9906 Volume Section 5.2, ensuring your outputs meet the highest Quality Assurance standards.

Can I import AIXM data directly?

Absolutely. The AeroDataManager module supports the direct import and management of AIXM 4.5, AIXM 5.1, eTOD, and CSV files, maintaining data integrity throughout the process.

Does it support both PANS-OPS and TERPS?

Yes. The software includes comprehensive criteria libraries for both ICAO PANS-OPS (Doc 8168) and FAA TERPS standards, allowing you to switch between regulatory frameworks as required by your project.

PDToolKit is the only PANS-OPS & TERPS design software that integrates natively with both AutoCAD and MicroStation, offering automated compliance checks, AIXM 5.1 integration, and a seamless workflow for complex airspace design.
